Wireless Gas sensors are devices that alert the user wirelessly when they detect harmful and undesired gases. Or when the concentration of the gas goes beyond a certain threshold. Gas sensors are deployed to detect toxic, flammable and combustible gases. The difference between a normal gas sensor and a wireless gas sensor is that a normal gas sensor will be able to alert the user only when he/she is near the proximity range but a wireless gas sensor has the ability to alert the user via internet irrespective of his/her location. A wireless gas sensor uses a radio frequency module partnered with a microcontroller which gives it the capability to make decisions such as when to alert the user. The core gas sensing element used in a wireless gas sensor is the same as that of the traditional gas sensor.

Types of gases that are detected

Generally, there are two categories of gases that are detected by the sensors. Combustible and toxic.

Combustible gases are those gases which burn when in contact with Oxygen. Some of these gases are hydrogen, butane, methane etc.

Toxic gases are those gases which are hazardous and can cause significant harm to living beings. Some of these gases are carbon monoxide, chlorine, nitrogen dioxide and phosgene.

The technology of sensors

In order to detect harmful gases efficiently, different types of sensors have been designed. Each type of sensor has its own mechanism to detect the respective type of gases. But nowadays sensors being developed have the ability to detect all types of gases, so instead of installing different sensors, a single sensor solves the problem.

Catalytic and infrared sensors detect combustible gases.

Electrochemical and metal oxide semiconductor detect toxic gases.

Measuring toxic gases

Electrochemical sensors

Image taken from source

These sensors can detect gases like Carbon monoxide, Nitrogen oxide etc. They work around the basic principle of oxidation and reduction which results in a flow of current. That current is measured by the internal circuitry of the sensor to decide the concentration.

These sensors come in different variants. Variants depend on the number of electrodes used. Sensors will have two, three or sometimes four electrodes. The electrodes are placed in contact with an electrolyte that is made from mineral acids or in some cases, organic substitute. The electrodes are very sensitive and give out electric current which is fed to the warning circuitry. The gas enters into the sensor through a membrane or thin film and reaches the electrode. Here it is either oxidized or reduced depending on the property of the gas. This electrochemical process results in an electric current that further goes to the external circuitry responsible for alarming.

But these sensors have certain disadvantages. Gases which are inert or don’t react very easily may not get detected by the sensor. So it is suitable for active gases only.

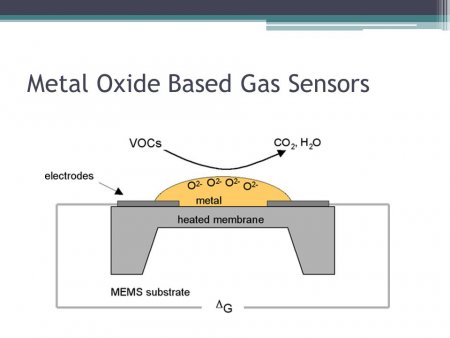

Metal Oxide Semiconductors (MOS)

Image taken from source

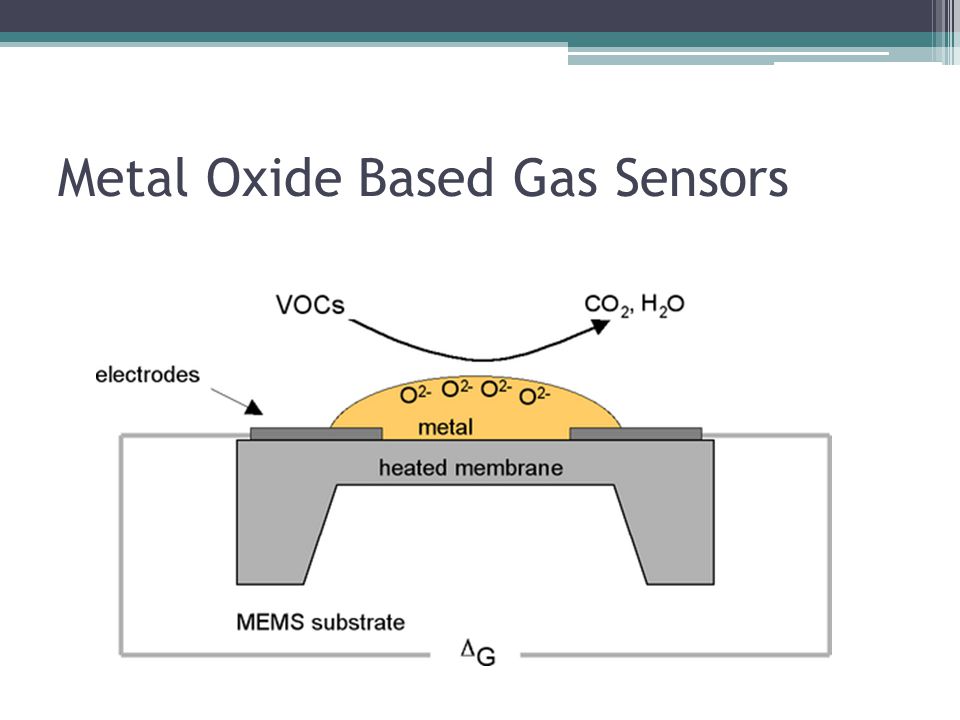

These sensors serve the same purpose as electrochemical sensors except that it has a different construction and can detect a large number of gases. They too have a  gas sensitive film that is composed of a metal oxide like tungsten oxide or tin oxide. When gas enters into the sensor it reacts with the film which in turn triggers the device if the detected concentration is above a threshold value. Under normal circumstances, i.e. in the presence of Oxygen, electrons responsible for the flow of current react with Oxygen and get absorbed in the film(Oxygen gets absorbed and attracts free electrons), thus preventing the flow of current. So the sensor remains unpowered. But in the presence of a reducing gas, Oxygen is absorbed by gas molecules. In the absence of Oxygen, electrons don’t have anything to get attracted to and thus resume the flow which in turn triggers up the sensor.

The concentration of the harmful gas in air is measured by the change in resistance inside the sensor. The reaction between the harmful gas and oxygen on the film surface varies, depending on the reactivity of material and surrounding temperature.

Measuring Combustible Gases

Catalytic sensors

Image taken from source

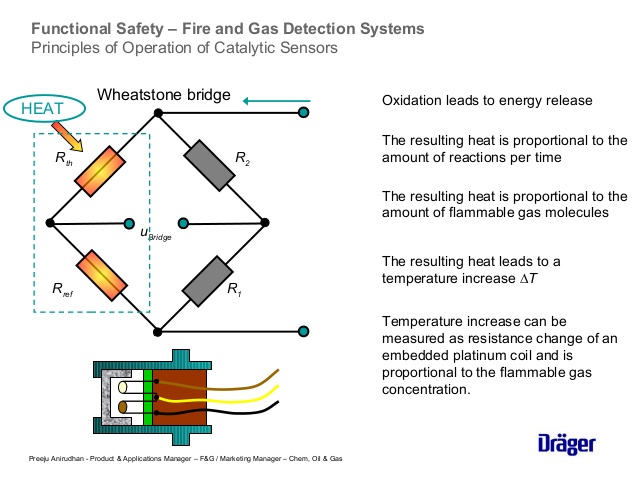

These type of gas sensors are rather a simple one. They incorporate a Wheatstone bridge which consists of a detector element and a compensator element along with a variable resistor. The detector element contains catalytic material which is very sensitive to combustible gases. The compensator element is inert and doesn’t react. The gases which are reactive and combustible in nature react with the detector owing to its catalytic material. This results in the rise of temperature which in turn increases the resistance. Compensator remains unchanged. The variable resistor is there just to keep the bridge balanced in the clean air. In presence of a reactive gas, detector resistance increases, thus unbalancing the bridge circuit. This produces an output voltage signal which by nature is proportional to the concentration of gases. So output voltage enables us to measure the concentration of the harmful gases.

Infrared sensors

Image taken from source

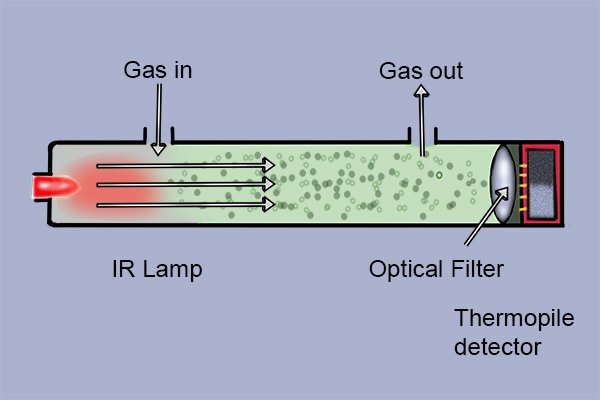

These sensors work in response to change in the intensity of light by a volume of gas. It contains a set of transmitters and receivers which detect combustible gases. The transmitters act as light sources(infrared) and receivers as light detectors. When a gas enters in between them, the gas absorbs some of the infrared wavelengths as light passes through it. The intensity of absorbed light is compared with the intensity of light at a non-absorbed wavelength. The external circuitry computes the concentration from this.

Also, the altered state of light determines what type of gas is present.

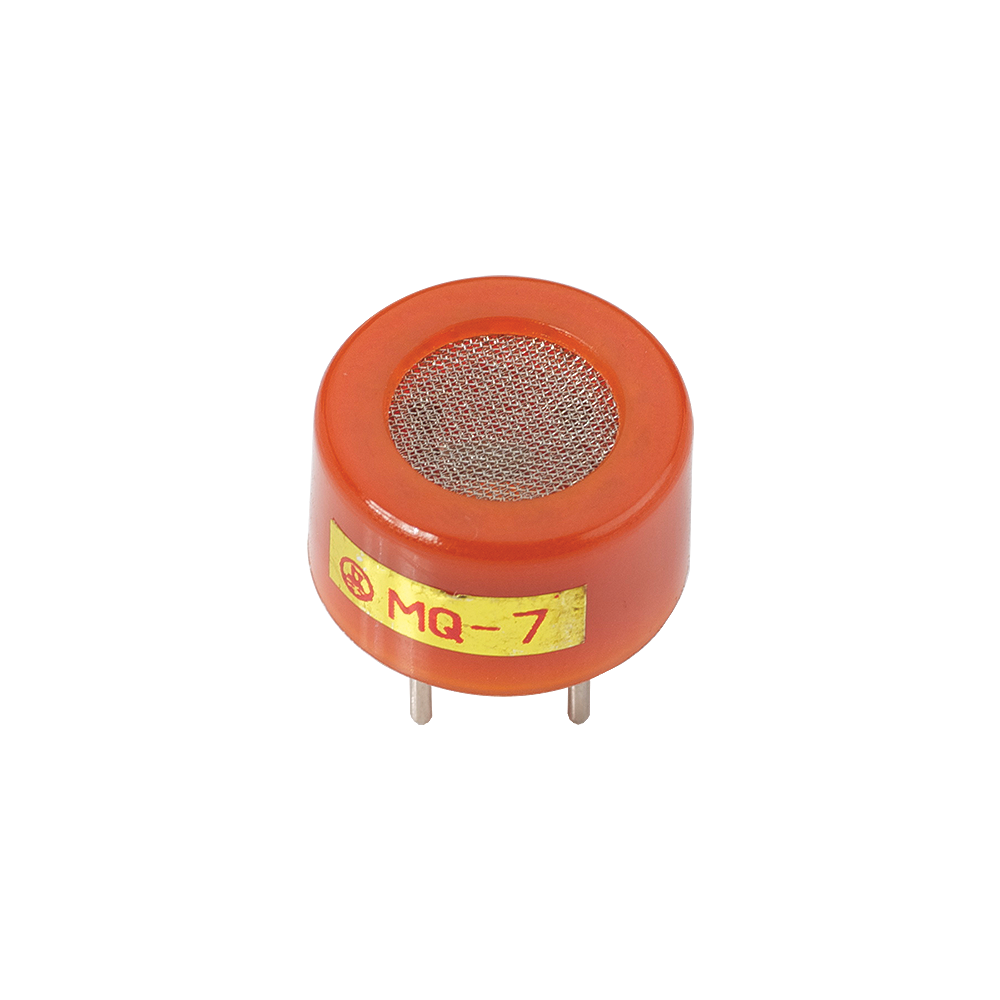

Popular gas sensor components

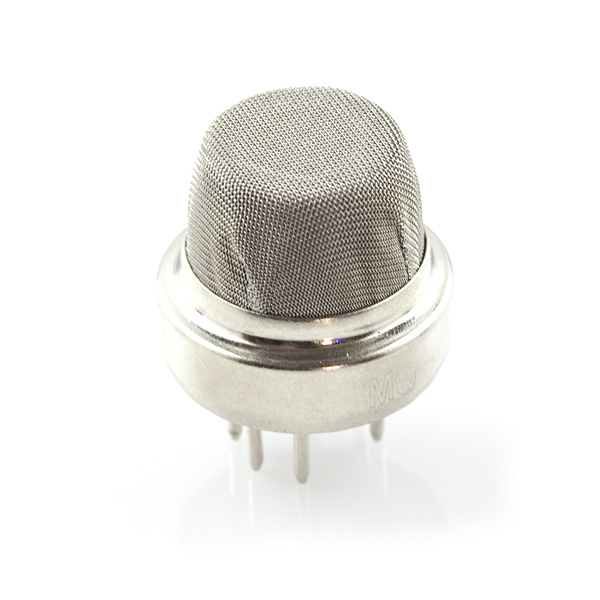

Manufacturer: Parallex
Type: CO
Output: 0V~5V
Operating Temperature: -20C ~ 50C
Voltage Supply: 5V
Current Supply: 160mA
Relative humidity: Less than 95%RH
Price: $5.99

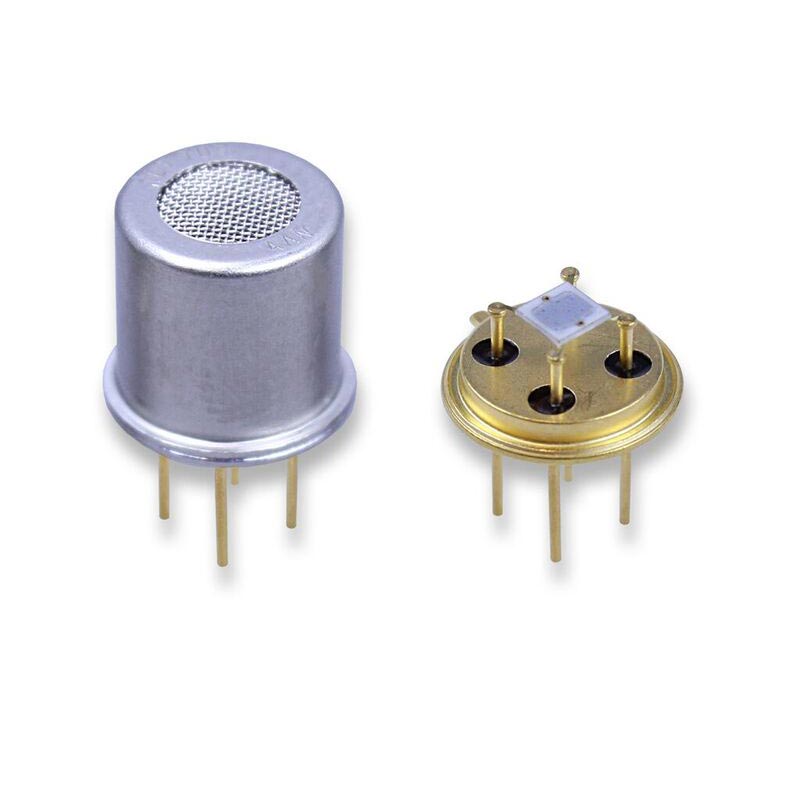

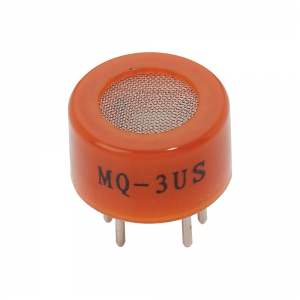

Manufacturer: Parallex
Type: Alcohol Benzene
Output: 0V~5V
Operating Temperature: -10C ~ 50C
Voltage Supply: 5V
Current Supply: 160mA
Relative humidity: Less than 95%RH
Price: $4.99
Manufacturer: Sparkfun Electronics
Type: LPG
Output: 2.5V~4V
Operating Temperature: 20C
Voltage Supply: 5V
Relative humidity: 55%±5%RH
Price: $4.95
Manufacturer: IDT
Type: Hydrogen
Output: 0V~5V
Operating Temperature: -20C ~ 50C
Voltage Supply: 2.5V ~ 5V
Current Supply: 160mA
Relative humidity: Up to 90% RH
Price: $31.24

Things to keep in mind while selecting a gas sensor

  • Type of installation site: It is important to conduct a risk assessment before selecting a suitable type in order to identify the potential gases that are emitted and also to know the percentage of oxygen present in the site. If hazardous gases are identified, detection becomes easier.
  • Knowing your objective: Depending on the functioning of the site and the processes being carried out over there, it is important to know how the alarm system will work in case of detection of hazardous gases. Knowing this makes it easy to do enhanced reporting.
  • Environmental conditions: Knowing the environmental conditions like temperature, humidity and pressure at the site are vital as they can directly affect the performance of a gas detector.
  • Mechanism of the selected product: Understanding this area directly impacts the product functionality like wiring, mounting, and if it is to be fitted in a tight space or a specific container, the device communication range.

Commercial wireless gas sensors available in the market

Name of the sensor Specifications Price Where to buy

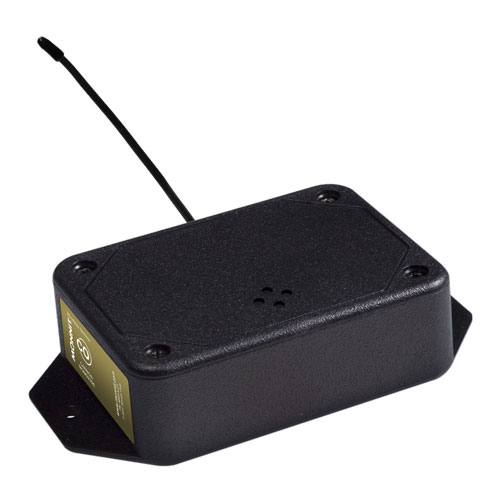

  • Frequency: 900 MHz
  • Measurement range of 0-1000 PPM.
  • ± 1 PPM Resolution.
  • Accurate to ± 2% of reading or 1 ppm.
  • Alerts contain CO level in PPM.
  • Customizable alerting based on specified CO levels (sensitivity of alerts is adjustable, not just what is deemed dangerous).
  • CO levels are recorded (data logged) in the system at every heartbeat.
$124.00 BUY

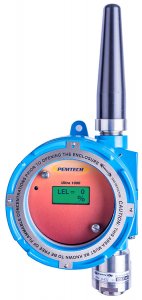

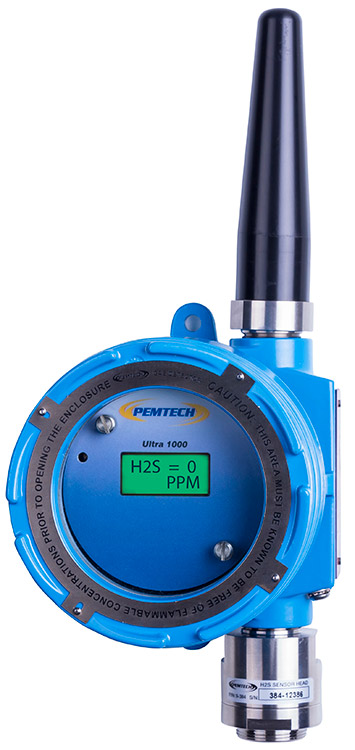

  • Measuring Range:
    Ammonia (NH3):0-50 ppm
    Carbon Monoxide (CO):0-100, 0-1000 ppm
    Chlorine (CL2) :0-10 ppm
    Chlorine Dioxide (CLO2):0-50 ppm
    Hydrogen Sulfide (H2S):0-100, 0-500 ppm
    Hydrogen (H2):0-200 ppm
    Nitrogen Dioxide (NO2):0-20 ppm
    Nitric Oxide (NO):0-100 ppm
    Oxygen Deficiency (O2):0-25 %(volume)
    Sulfur Dioxide (SO2):0-100 ppm
  • Frequency:900 MHz (FHSS)
  • Temp:-30°F to +122°F (-34°C to +50°C)
  • Humidity:15 - 90% RH (non condensing)


  • Measuring Range: 0 - 100 % LEL (lower explosive limit)
  • Accuracy: ±2% F.S. (0-50% LEL)
  • Frequency:900 MHz (FHSS)
    2.4 GHz (DSSS) International
  • Temp: -40°F to +158°F (-40°C to +70°C)
  • Humidity: 15 - 90% RH (non condensing)
Contact Vendor BUY

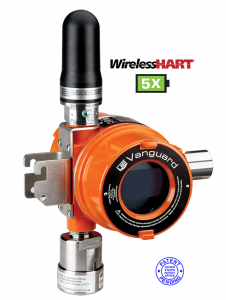

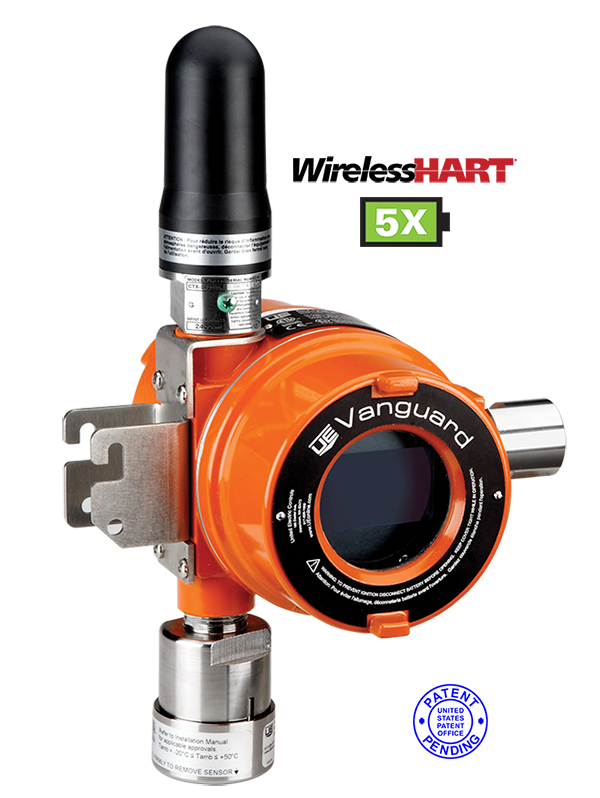

Operating Temperature: -40°F to 149°F (-40°C to 65°C)*
Supported Gases: Methane (CH?); Hydrogen Sulfide (H?S)
Resolution: 1%LEL or 1ppm
Accuracy: ±2% LEL (CH? sensor) ; ±10 PPM  (H?S sensor)
Enclosure: Type 4X, IP66
Weight: 9.6 lbs (including sensor and battery)
Contact Vendor BUY

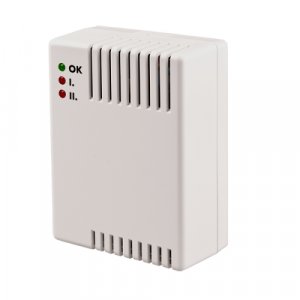

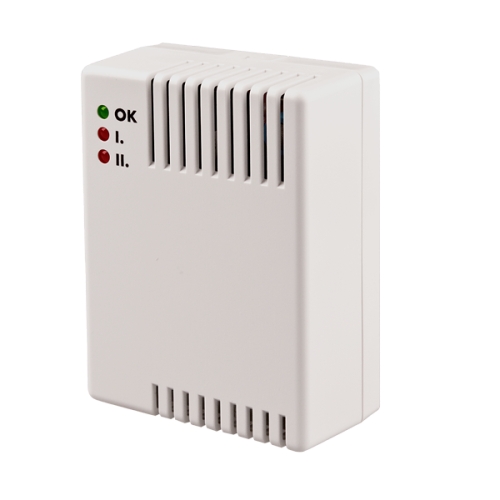

Voltage: 230 V (+10 to -15%) / 50 Hz, about 2 W
Stabilization time: 90 s
Response time: 10 s
Detection method: catalytic combustion
Communication band: 868,5 MHz
Communication range: 200 meters (open area)
Operational temperature: -10 to +40 °C
Contact Vendor BUY
